Vertical Mould Cooler

Please Call

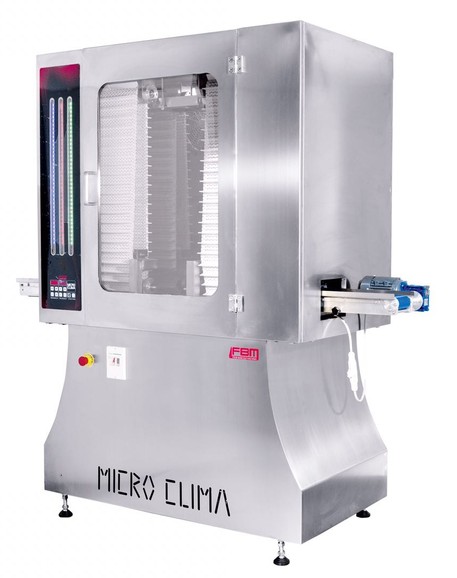

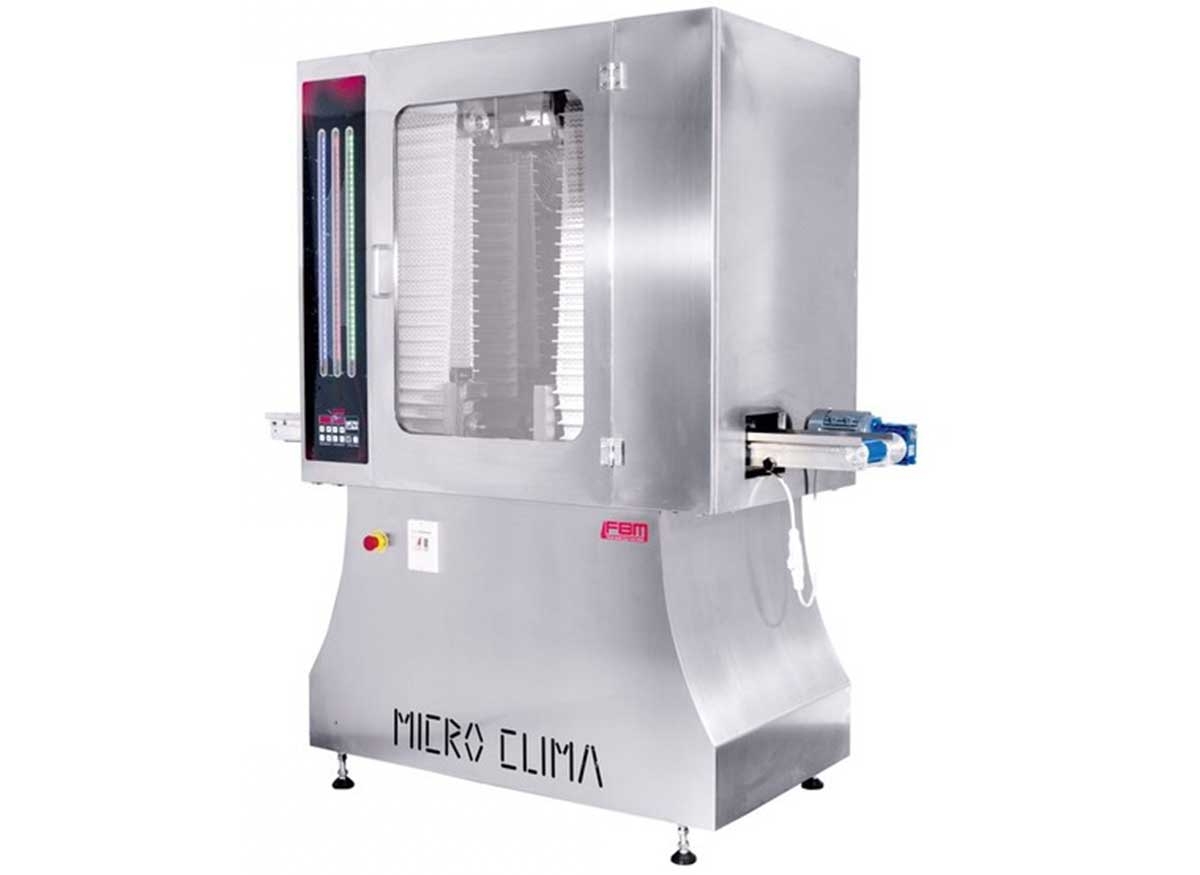

Space saving Clima Micro is a vertical cooling tunnel for space sensitive environments.


Optimize your molded chocolate production with the Micro Clima vertical cooling tunnel made specifically for polycarbonate molds (moulds). Attached to a tempering machine, the Micro Clima is a smaller cooling tunnel that features a vertical movement system to cool your chocolate.

Equipped with 2 fans and 2 loading towers of 20 molds each, timed mold presence sensors, a speed regulator and pneumatic pistons for horizontal movement of molds, the Micro Clima will cool your moulded chocolates without sacrificing space.

  • Production: from 3 molds per minute
  • 220/380V 3 phase, 50/60 Hz, 4 KW
  • Entrance section: 300mm
  • Exit section: 300mm
  • DIMS: 990 x 1850 x 2000mm H
  • Weight: 550kg

Actual output of molds per minute in Micro Clima depends on the cooling time of the particular product.

Give us a call to learn more about the Clima vertical cooling tunnel lines. We will be happy to discuss your requirements.
