Betec One Shot Depositor

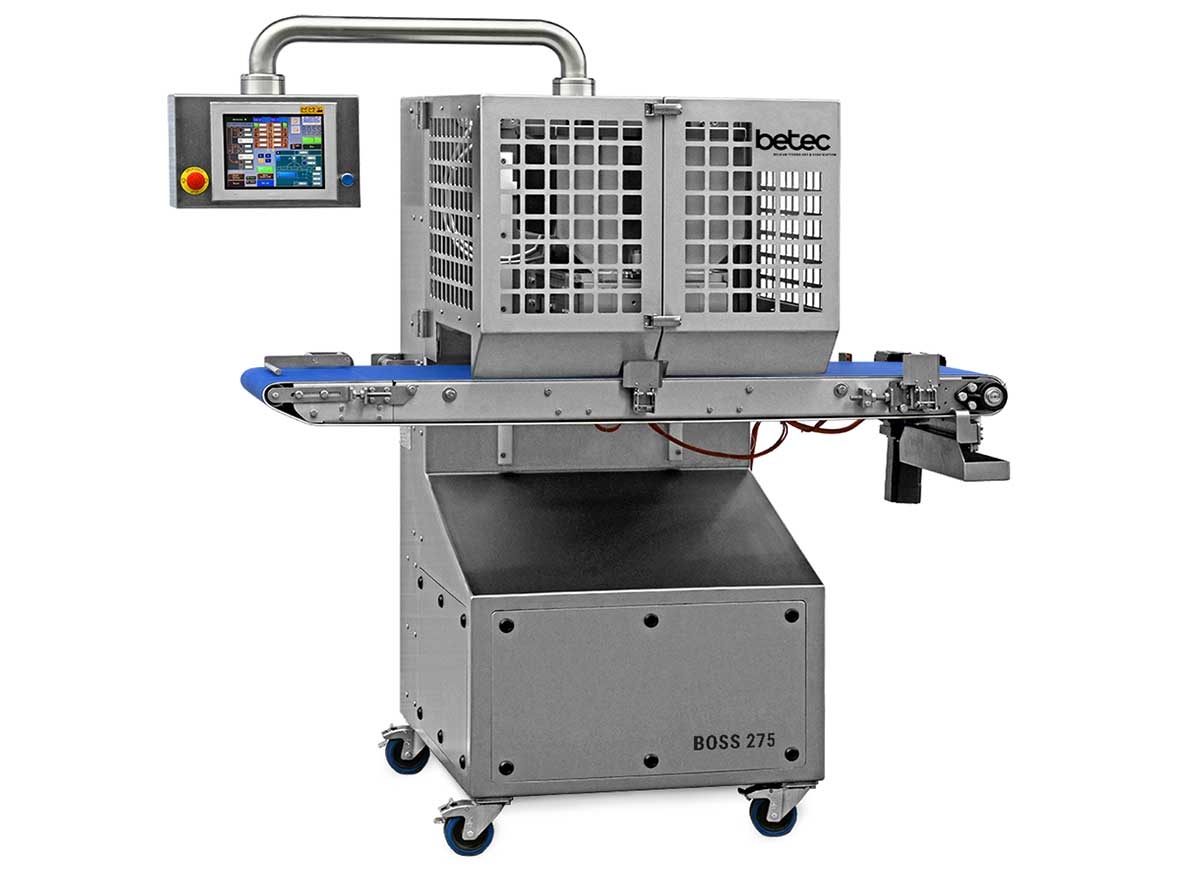

Boss 275
Please Call

Betec One shot gear depositor is designed to fill confectionery products in a single operation.


Improve production output by depositing products in a single operation with a high quality BeTec One Shot gear depositor. Ideal for quickly and uniformly depositing pralines, truffle balls, eggs, long and short filled bars, tablets, manons, and more.

The Betec One Shot machine has a large depositing range and is able to dispense and deposit 12 one shot or 24 solid products in one depositing stroke using 24 gears. The hopper and dosing head are water heated and all motions are activated by servomotors. All drives incorporate overload protection and have a security stop prevention function.

  • User friendly - All parameters quickly and easily adjusted on the touch screen
  • Accurate temperature control
  • Water heated hoppers and dosing head
  • Hoppers mounted on hinges
  • Existing moulds can be used without problem
  • Simple to clean
  • Conveyor belt is easily removable
  • 100 programs in memory

Store and use up to 100 programs in memory for best machine utilization. The hoppers, chassis, conveyor and gears are made of AISI 304 stainless steel. The dosing head is made of aluminum.

Electrical: 3x400/230 V+N+E
Power required: 5.7 kW
Hourly production rate: up to 150kg per hr.
DIMS: 1500mm L x 950mm W x 1850mm H

Further increase your productivity by connecting the BeTec One Shot machine to a BeTec tempering machine. Other options include an automatic mould loader, mould preheater, vibrating / shaking system, vertical or horizontal cooling tunnels with separated temperature zones as needed, automatic demoulding system, or mould returning system.

The BeTec One Shot gear depositor is a well built and high functioning machine. For more information, please give us a call and we will be happy to discuss your requirements.

PLEASE NOTE: Fillings with solid inclusions or solid ingredients larger than 2-3mm cannot be processed.
