KeyChoc Infinity Mould Loader

Infinity AML
Please Call

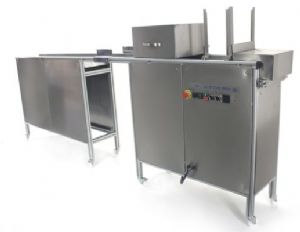

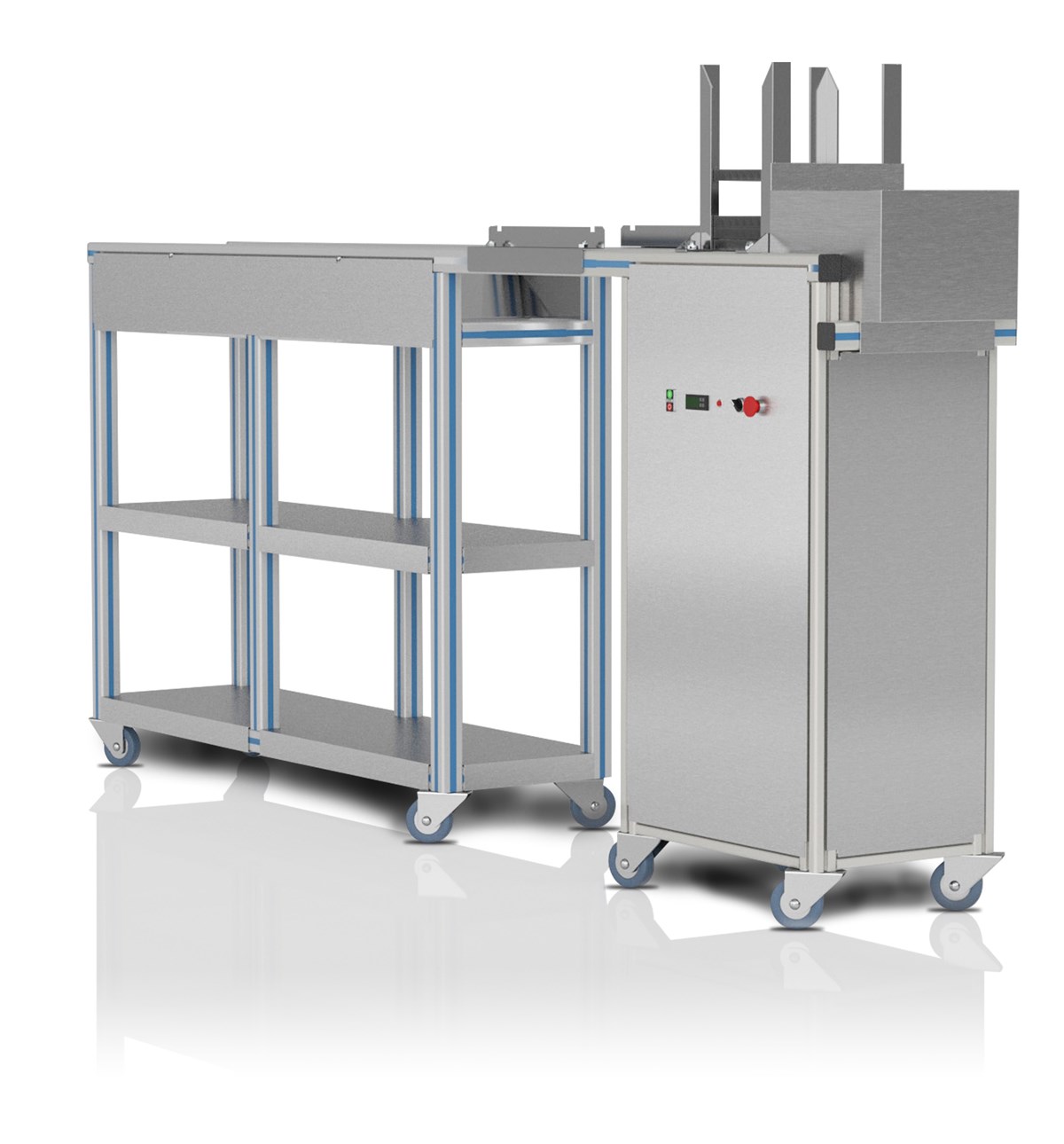

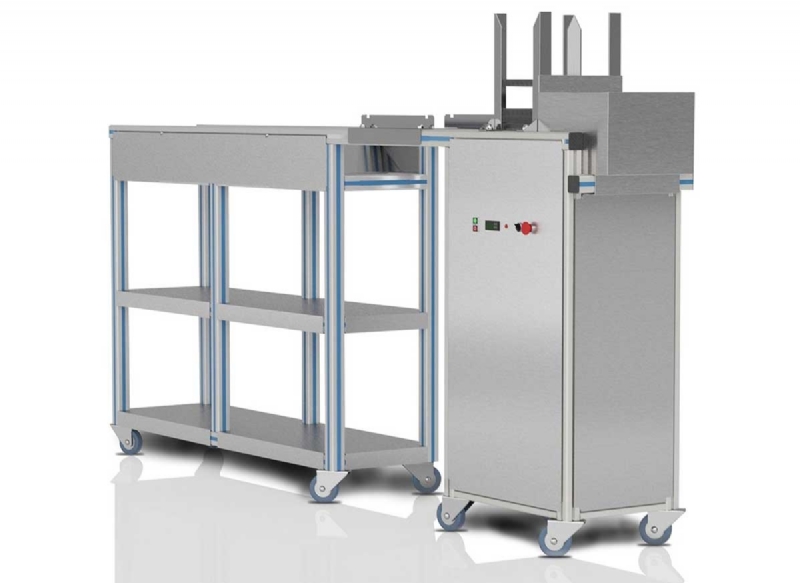

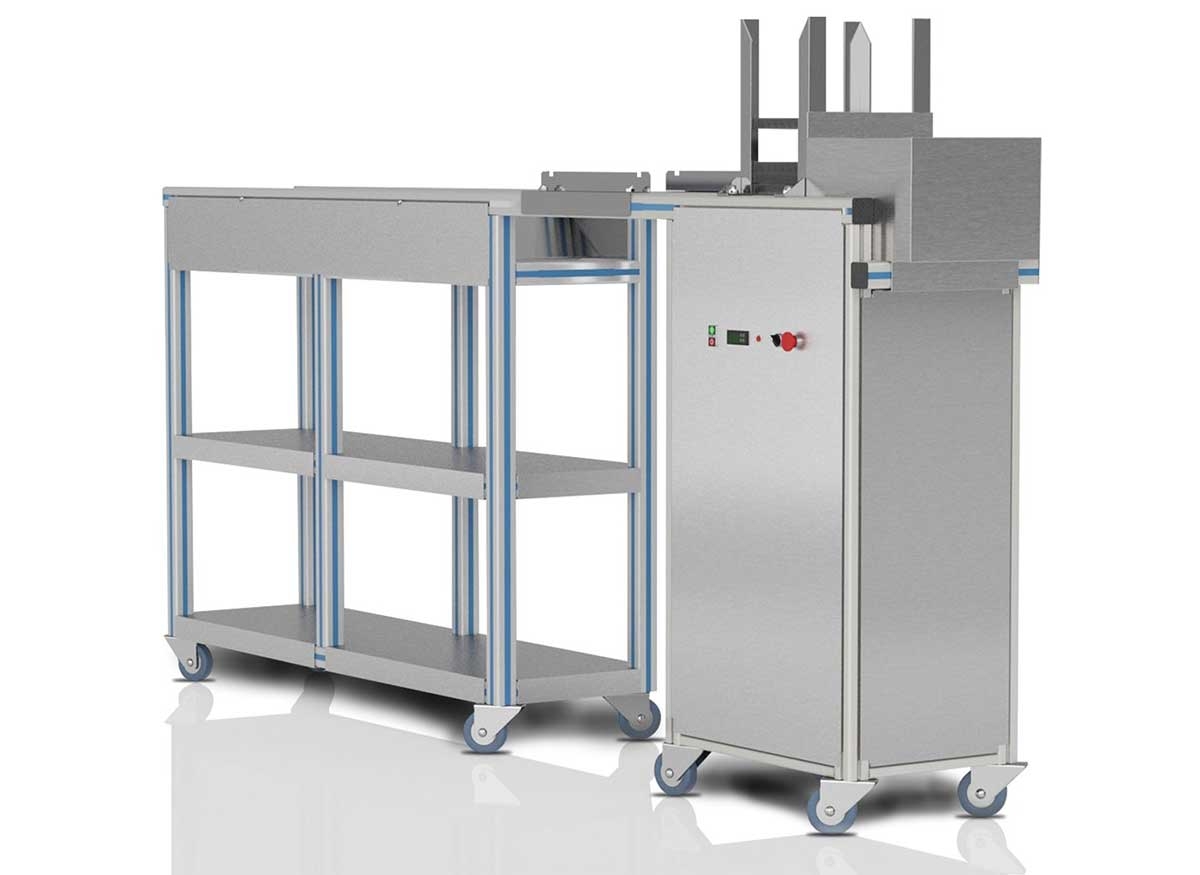

INFINITY AML is an automatic mould loader for standard sized polycarbonate moulds, used with Keychoc MX or AX.

addthis

The INFINITY AML (Automatic Mould Loader) is used with the KeyChoc INFINITY MX or INFINITY AX. It deposits chocolate into stacked standard sized polycarbonate moulds (275 x 175 mm or 275 x 135 mm) and moves them over the integrated vibrating table.

The Infinity AML can deposit up to 100g per second with a maximum rate of 600 moulds per hour. It is electrically actuated; no compressed air is needed.

INFINITY AUTOMATIC MOULD LOADER:

  • No independent power supply is required - Plugs into Infinity MX or AX
  • No air supply required
  • Deposit timing controlled by a built-in digital timer
  • Vibrating station included
  • Max deposit of 100g per sec / 150kgs per hr.
  • Throughput rate of ~600 moulds per hour
  • Dimensions: (W) 3000 mm x (D) 400 mm (H) 1050 mm

The Infinity AML teamed up with 3 or 4 Infinity tempering machines is an efficient and cost effective solution for several flavors or origins of chocolate (dark, milk, white or colored). The machines are on wheels and easily roll about as needed.

Please contact us at TCF Sales to discuss your moulding requirements: 512-201-4443.  We will be happy to help you!

NOTE: This item ships freight.
