Vertical Mould Cooler

Please Call

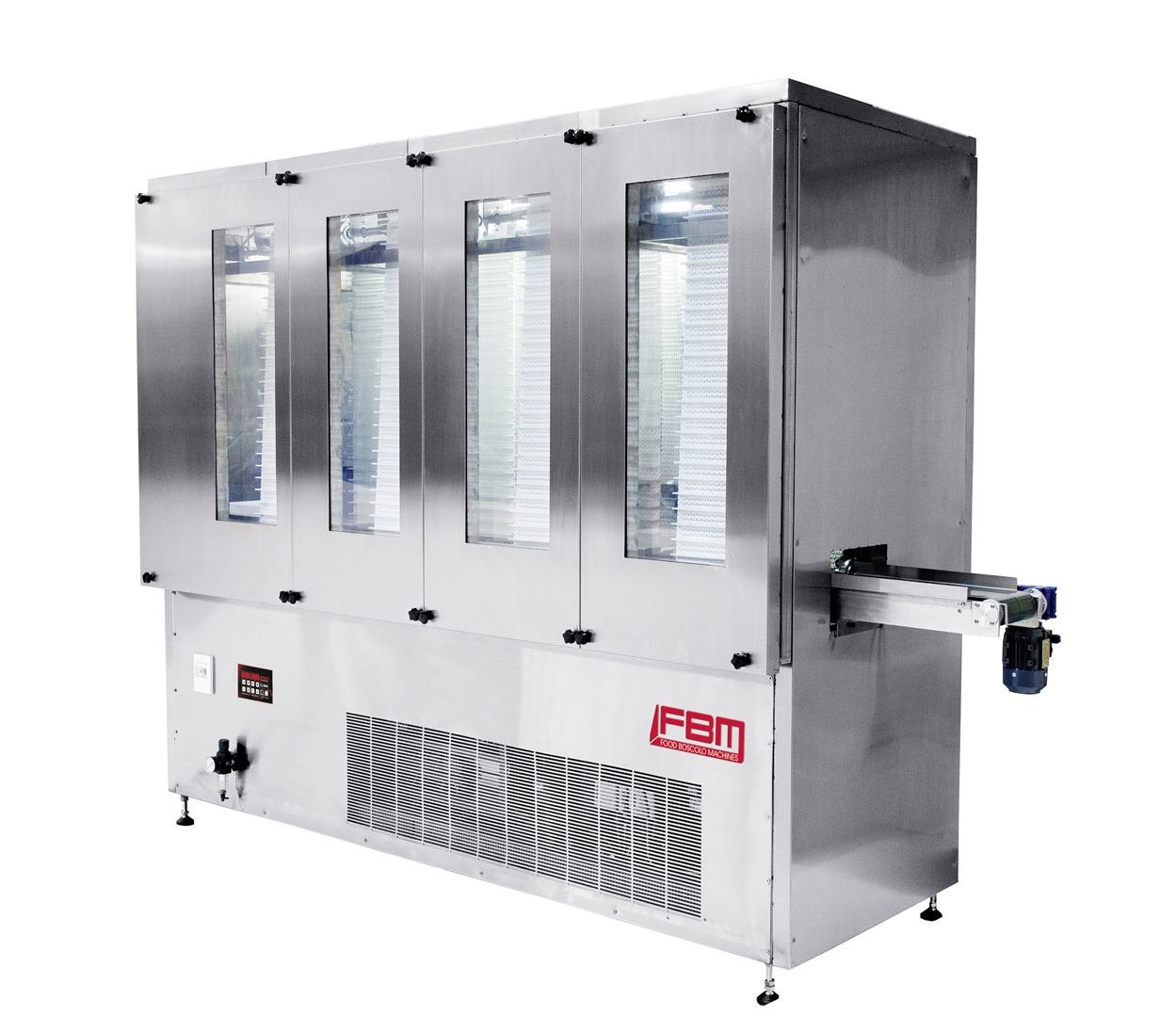

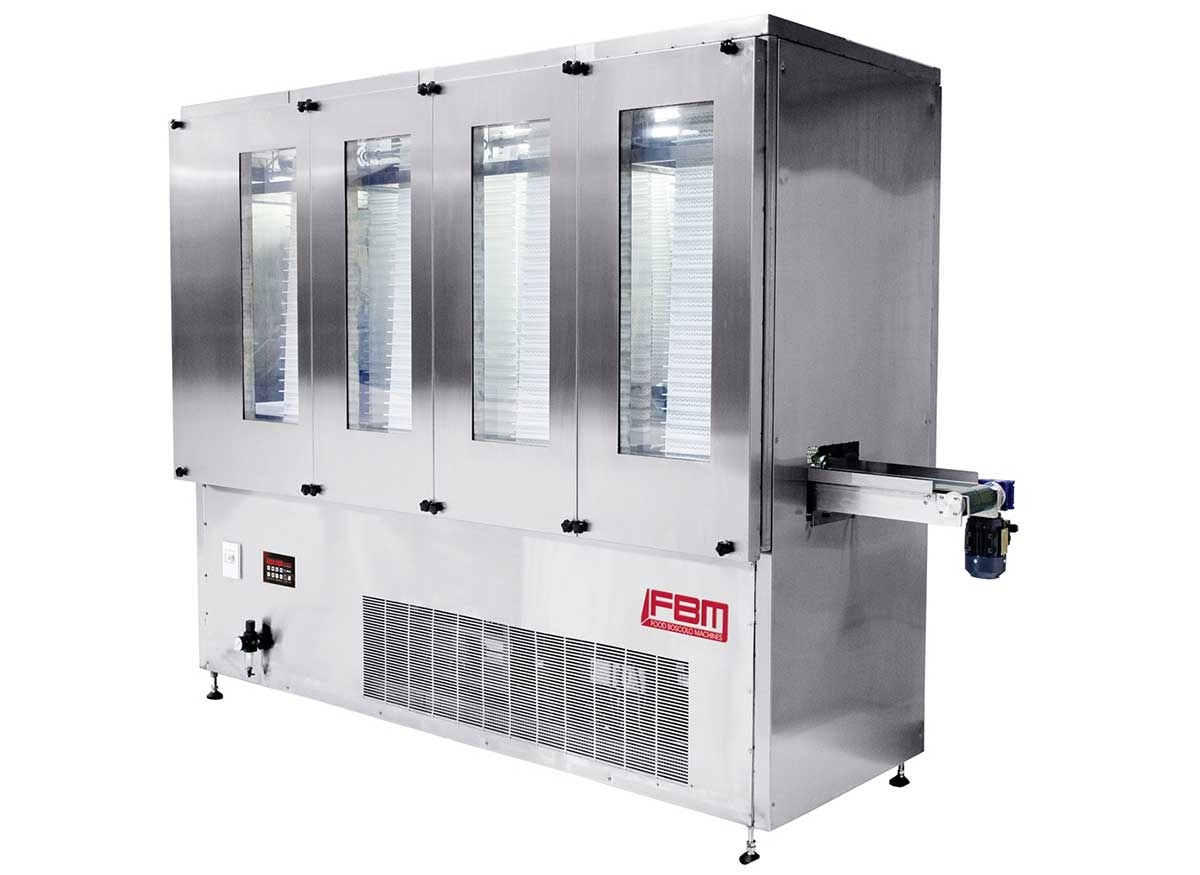

The CLIMA 100 vertical cooling tunnel for polycarbonate moulds holds up to 100 moulds at one time.


Clima 100 compact vertical cooling tunnel reduces the amount of floor space required to cool polycarbonate moulds allows loading of up to 100 moulds at one time. Chocolates and confections move through the vertical tunnel at an adjustable speed and temperature that you select to adequately cool specific mold (mould) designs.

The Clima 100 cooling tunnel can be utilized with any type of chocolate product that is produced in a standard sized 275 x 175 mm polycarbonate mould.  Actual output of molds per minute depends on the cooling time of the particular product.


  • Vertical tunnel for moulded chocolates
  • Using standard 275 x 175 mm polycarbonate moulds
  • Four lift towers each hold 25 molds
  • Holds up to 100 moulds
  • Digital controls / Adjustable belt speed / Timed sensors
  • Adjustable temperature, down to 5°C (41°F)
  • Pneumatic pistons for horizontal mould movement
  • Inspection windows with internal light

This vertical cooling tunnel is a substantial piece of equipment that is ideal for high production needs.

  • Installed power: 220/380 V 3 phases 50/60 Hz
  • Electrical configurations: 220/380 V 3 phases 50/60 Hz
  • Power consumption: 4 kW
  • DIMS: 3500 mm (w) x 1050 mm (d) x 2200 mm (h)
  • Weight: 900kg / 1980 lbs.

Smaller vertical cooling tunnels are also available. See the 'Applicable To' tab below.

NOTE: This cooling tunnel ships freight. Please contact us for a shipping quote.
