KeyChoc 24kg, BX Automatic Tempering

Infinity BX
Please Call

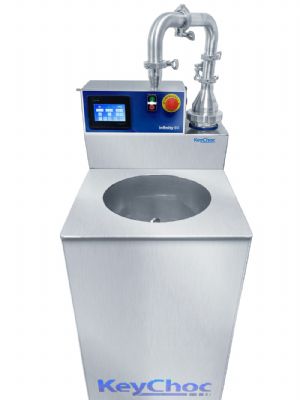

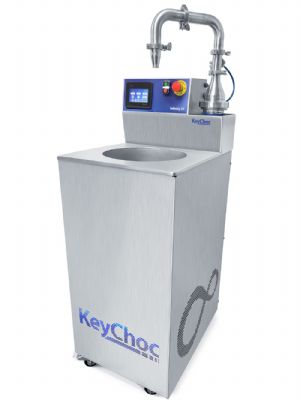

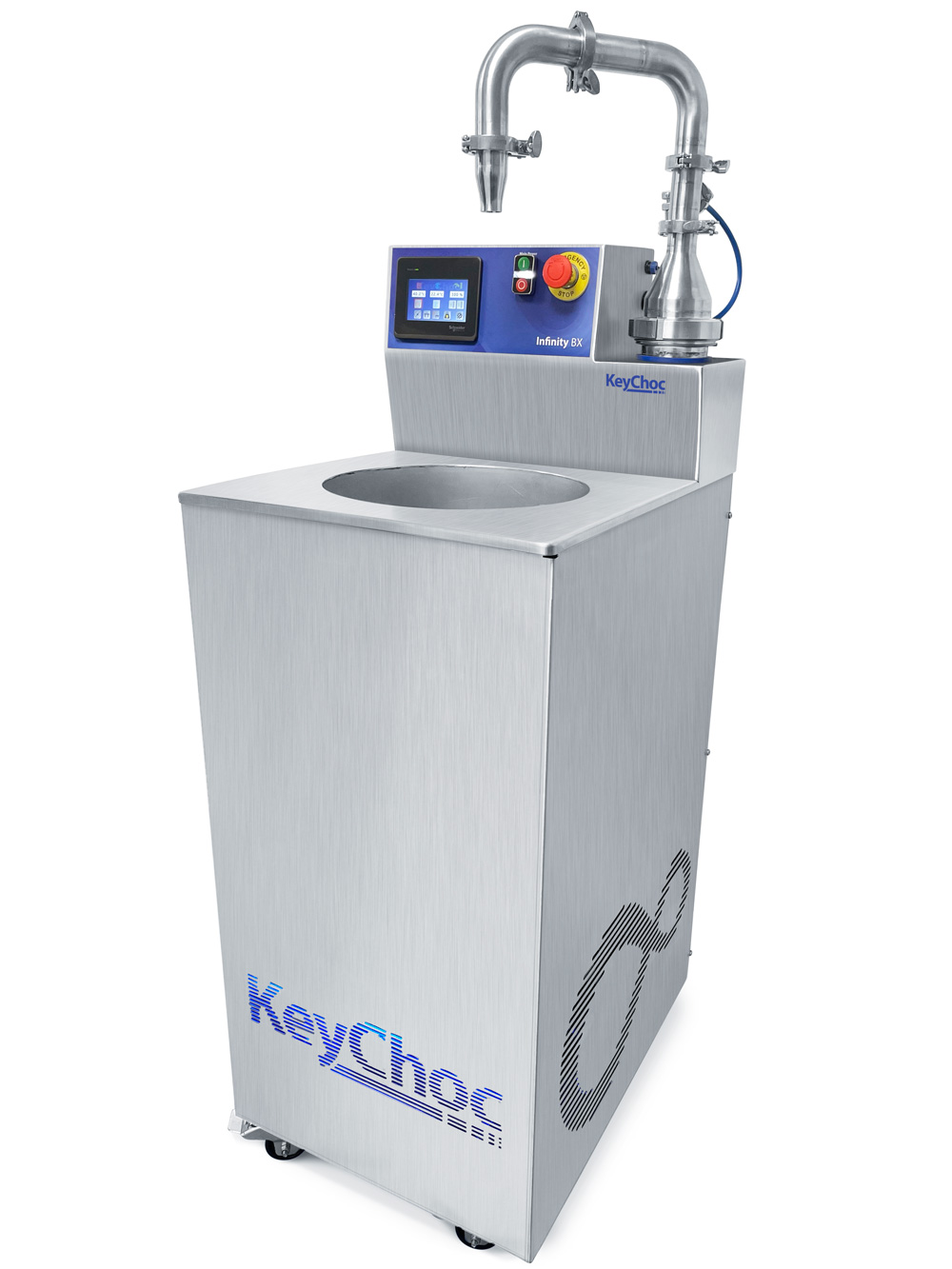

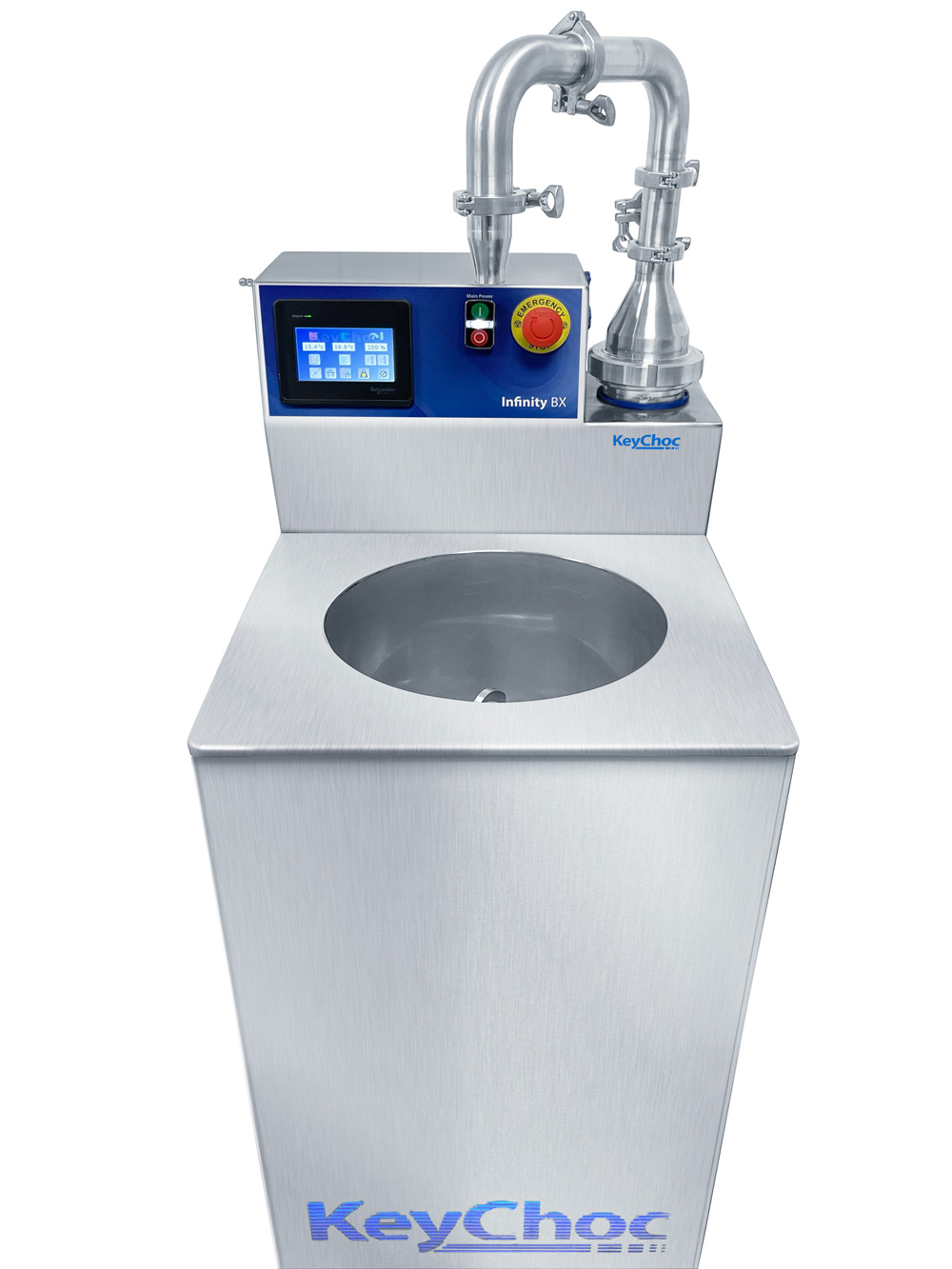

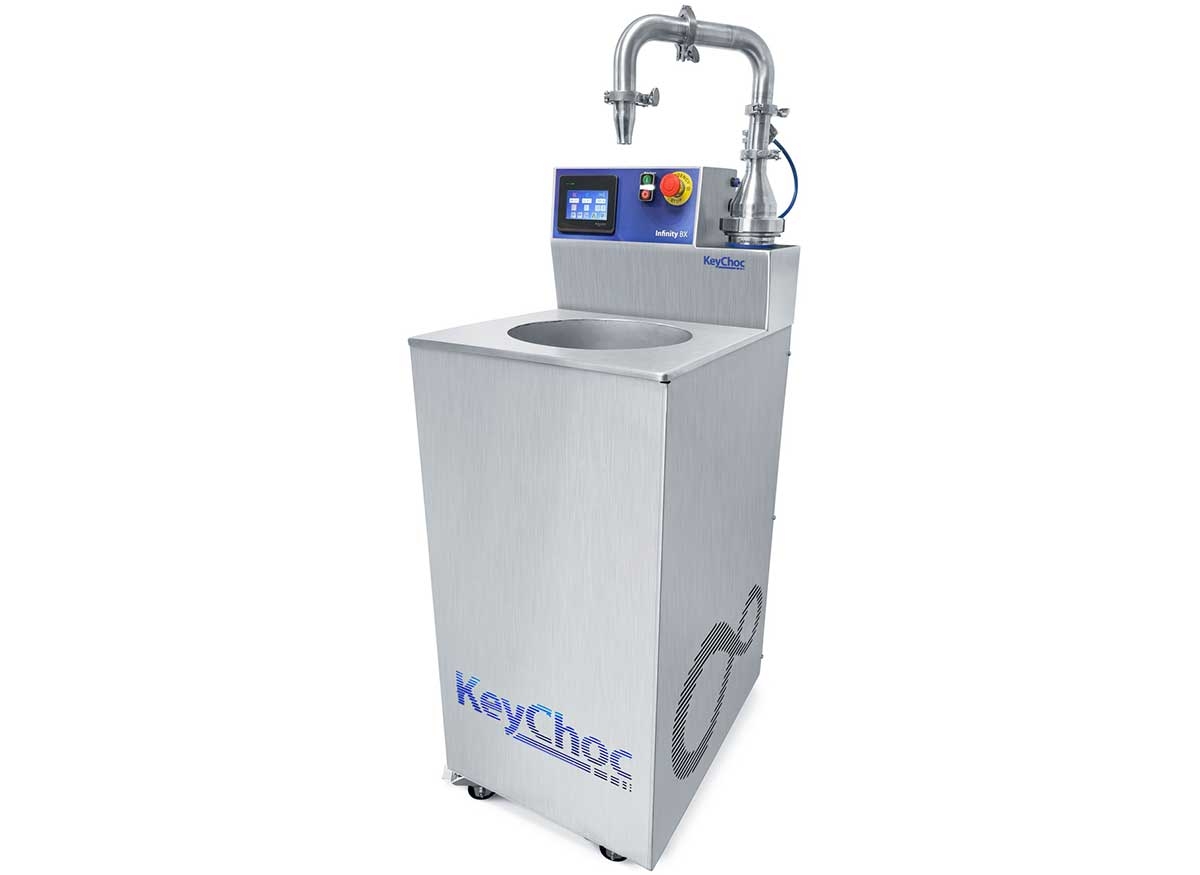

The KeyChoc 24kg INFINITY BX is a fully automatic tempering machine with touch screen control, removable auger, and a very competitive price.

addthis

The Infinity BX automatic chocolate tempering machine has a tank capacity of 24kgs yet only requires a minimum batch size of 6kgs, and can be used down to 3 kgs of tempered chocolate before reloading and retempering, or customers can periodically top-off with melted chocolate while running. The BX is very easy to use and is KeyChoc's entry level machine for those looking for a step-down from the Infinity AX (with larger capacity and flowrate).

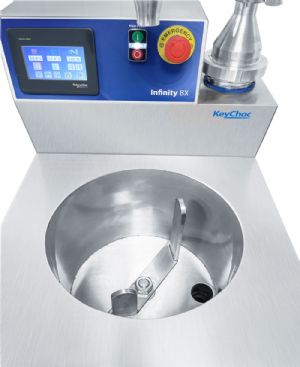

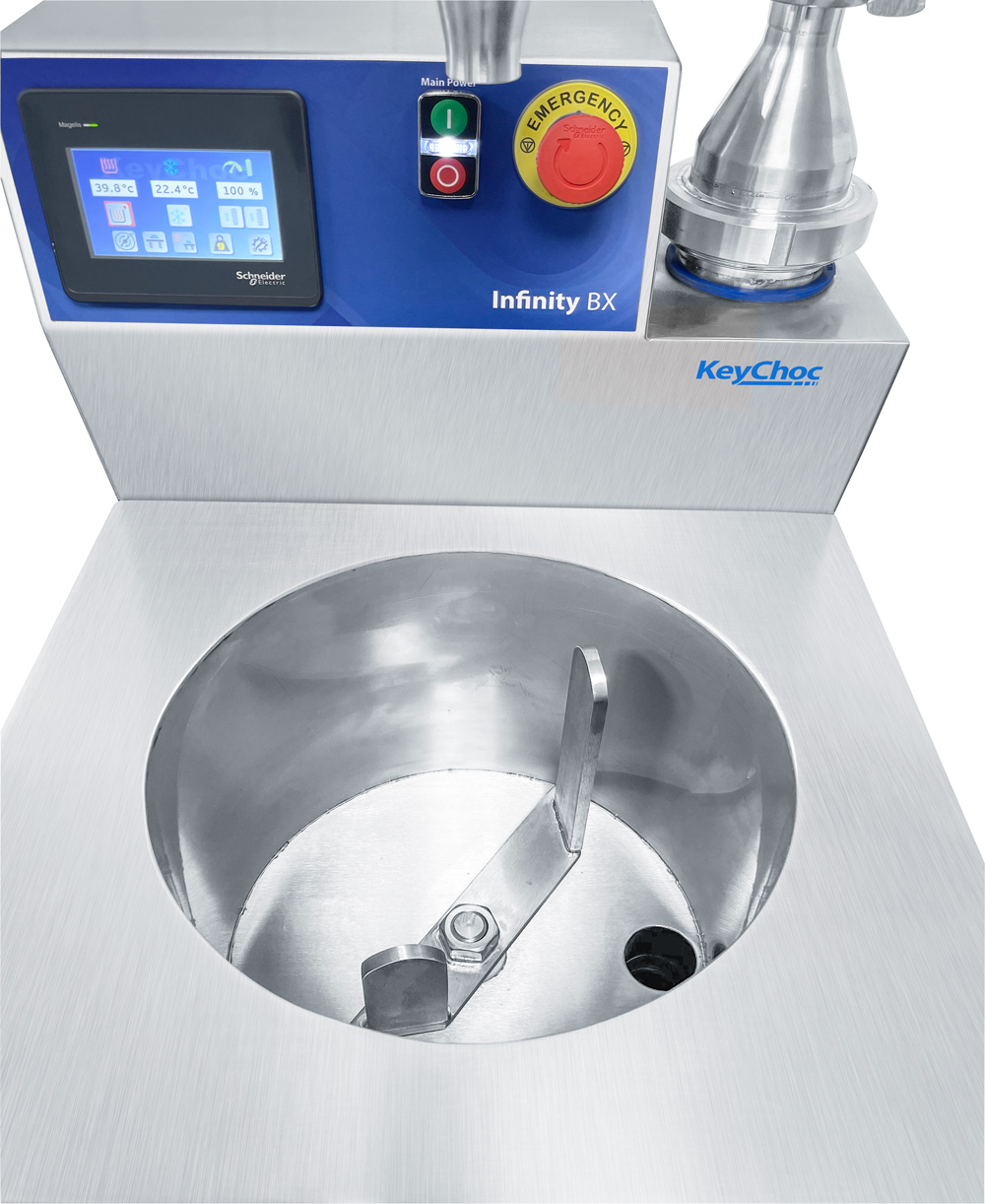

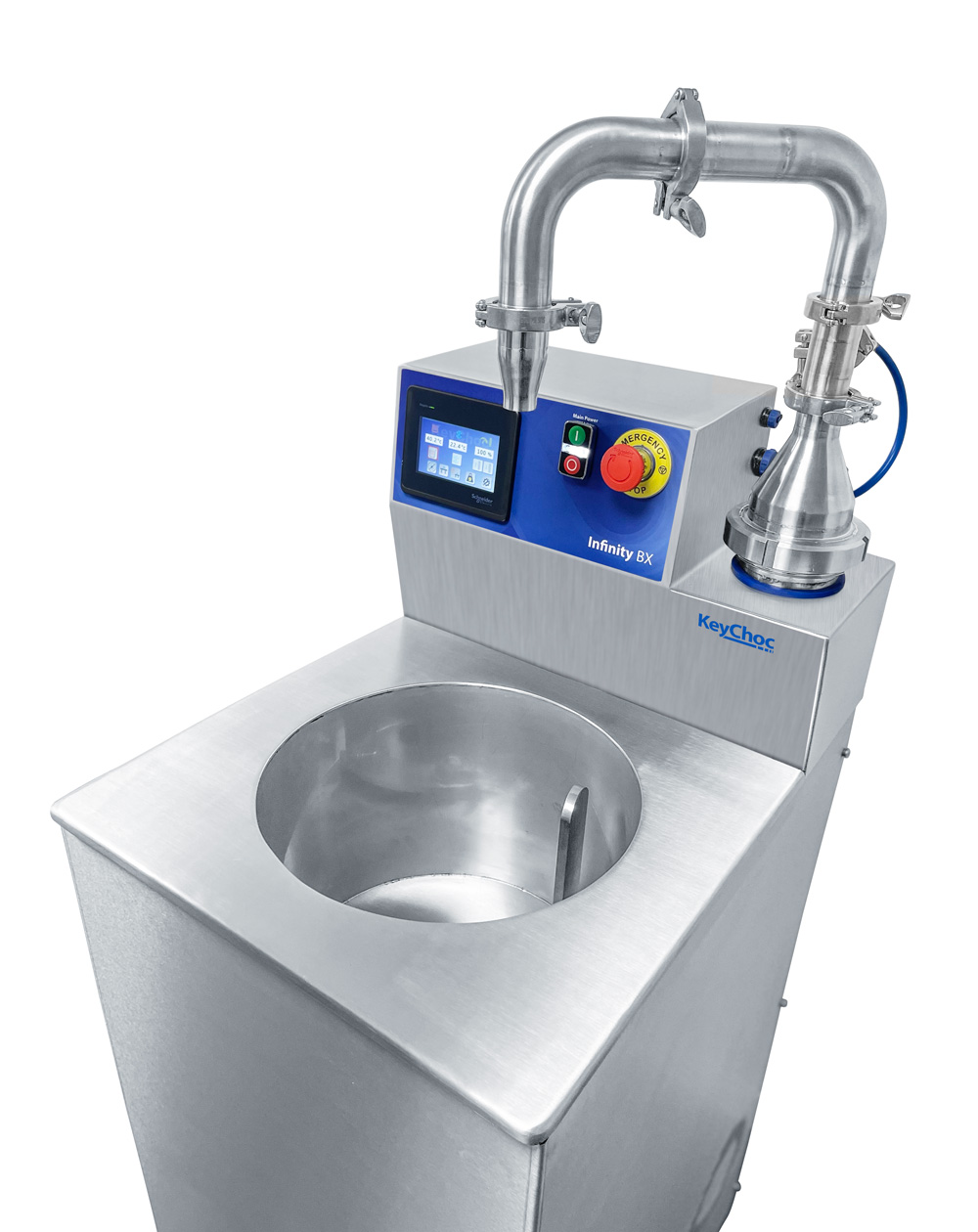

The BX tempering machine features a quick removable auger for easy chocolate changes. It has a pump reverse option to empty the auger tube and outlet pipe, and the outlet pipe can be swivelled to fill large moulds alongside the machine. The BX

INFINITY BX Operating Characteristics / Design and Construction:

  • 24kg tank capacity | Minimum batch size 6kgs | Can use down to 3kgs
  • Flow rate of up to 500 kgs per hour
  • Designed to work with inclusions up to 5mm
  • Foot-pedal operated manual depositing
  • Automatic deposit timer
  • Adjustable flow control
  • Electronic contact heaters for precise, responsive control
  • Fully insulated tank for energy efficiency
  • Gas cooling (R452a)
  • All contact parts made from stainless steel 304 (except auger)
  • Includes tank cover to prevent contamination

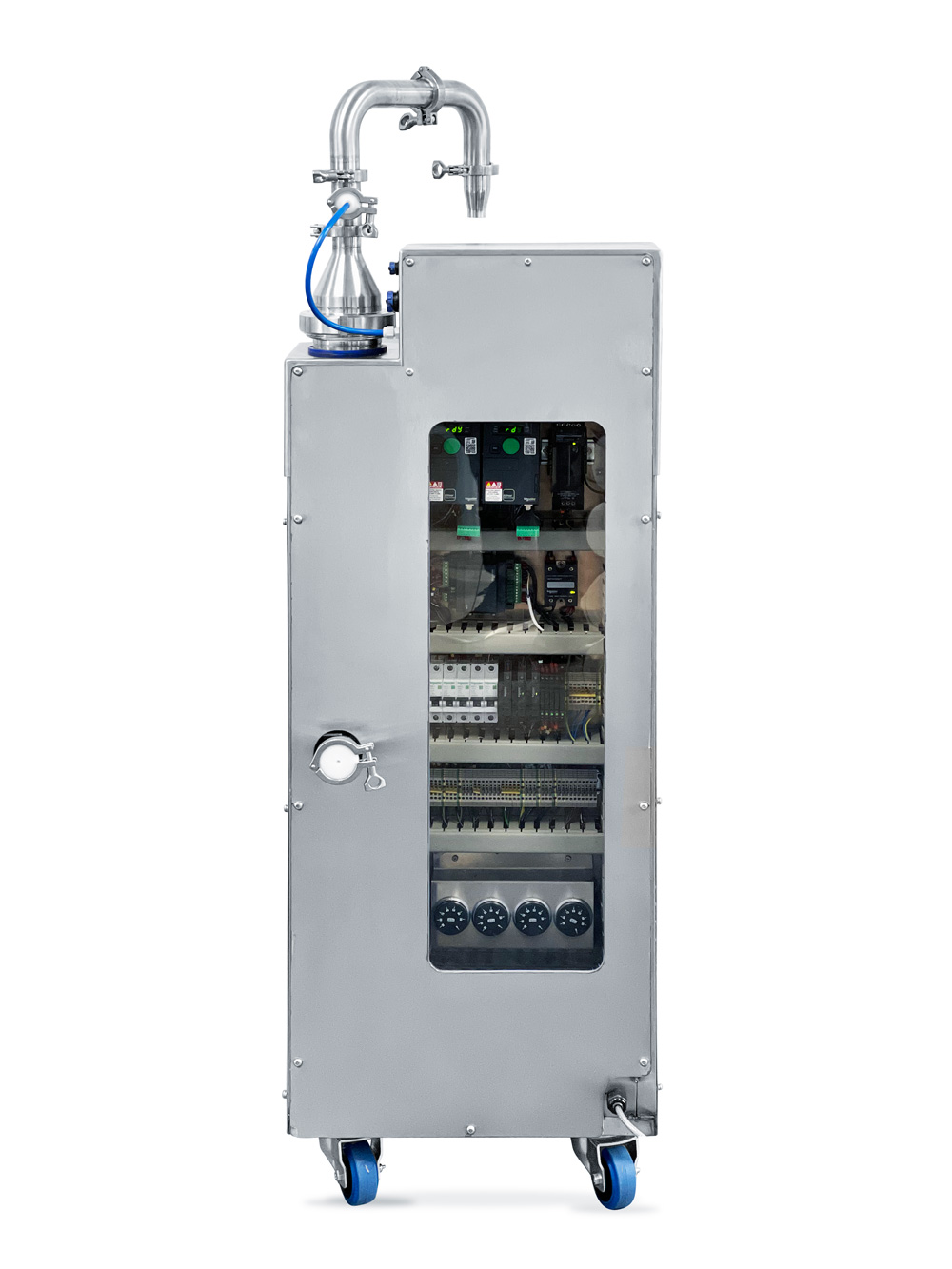

  • Includes drain outlet at rear of machine
  • Lockable castors for ease of movement
  • Single phase electrical | 3 Amps | 220-240V | 60 Hz
  • Maximum recommended environment temperature: 22° C (71.6° F)
  • No plumbing necessary
  • OPTIONAL Infinity vibrating tables (heated or unheated)
  • OPTIONAL Infinity depositing head
The INFINITY BX tempering machine offers many nice features. The auger is easily removed from the top of the machine allowing remaining chocolate to be shaken off into the tank with no mess. As a result, full machine cleaning can be accomplished in just 15-20 minutes (excluding drying time).

DIMENSIONS: 475 W x 660 D x 1280mm H
  •  Working height: 955mm H
  •  700mm W - With fitted vibrating table
KeyChoc is a British manufacturer and official machinery partner of the Barry Callebaut UK Academy; a trusted partner for artisan and industrial chocolate producers throughout the UK and a number of other countries throughout the world. KeyChoc understands quality, functionality and economy.

To learn more about the Infinity BX automatic tempering machine or other KeyChoc products, contact TCF Sales at 512-201-443. We will be happy to help you!

NOTE: This machine ships freight. Our online shipping cost estimator will not be correct. We will advise you of shipping charges as known.
