BETEC Moulding Lines

ML 400 / ML 600
Please Call

Betec moulding lines operated by 1 person for chocolate bars, pralines, and hollow figurines. Produce ~400 moulds per hr. with the ML 400 or ~600 moulds per hour with the ML 600.

addthis

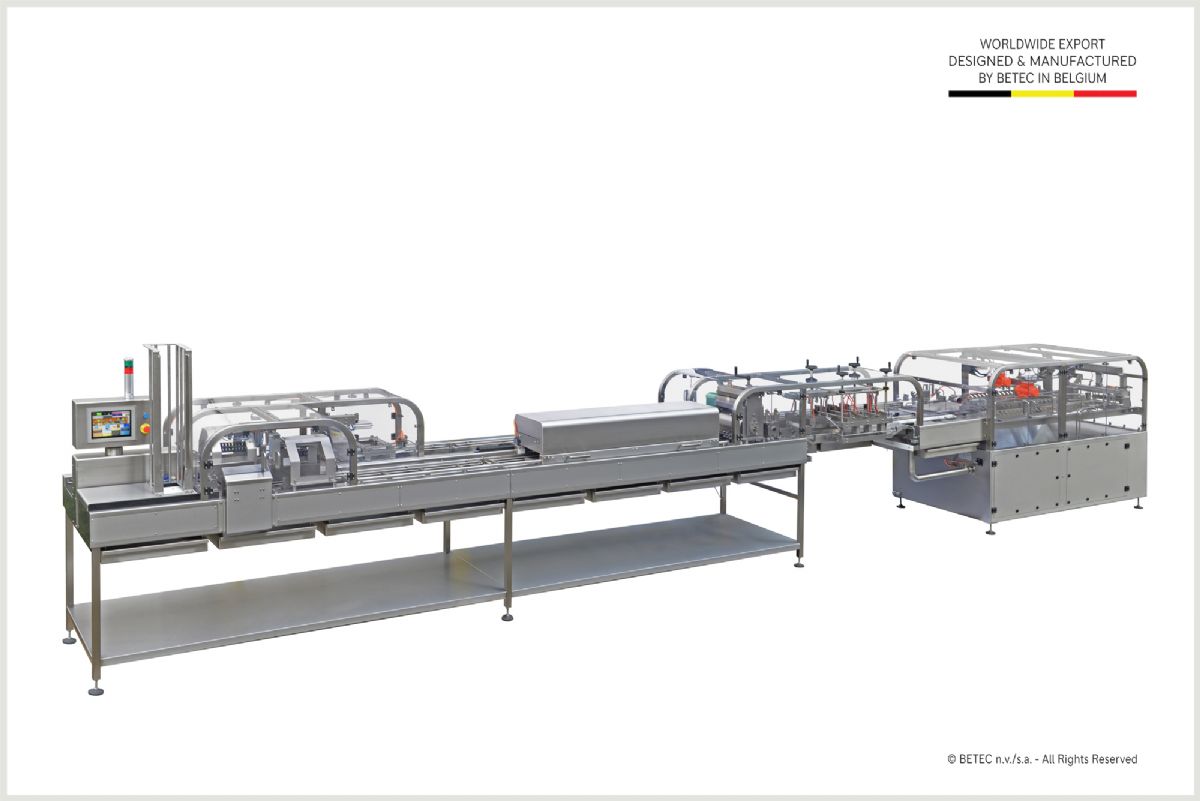

The Betec ML 400 and ML 600 chocolate moulding lines are operated by just one person, and used in conjunction with a hand moulding machine or automatic tempering machine placed underneath the depositing unit of the moulding line. Process chocolate bars, praline, or hollow figures with both standard sized polycarbonate moulds (135 x 275mm and 175 x 275mm), and add an optional horizontal cooling tunnel as desired.

  • The ML 400 has an average speed of 400 moulds per hour
  • The ML 600 has an average speed of 600 moulds per hour

BETEC ML 400 or ML 600 MOULDING LINE:

  • Depositing unit with electrically heated scrapers
  • 2 vibration areas with water heated catch pans
  • Take-off table with side and bottom mould scrapers
  • Color touch screen display for easy parameter control
  • Made of 304 stainless steel (3mm)
  • Easy and fast to clean

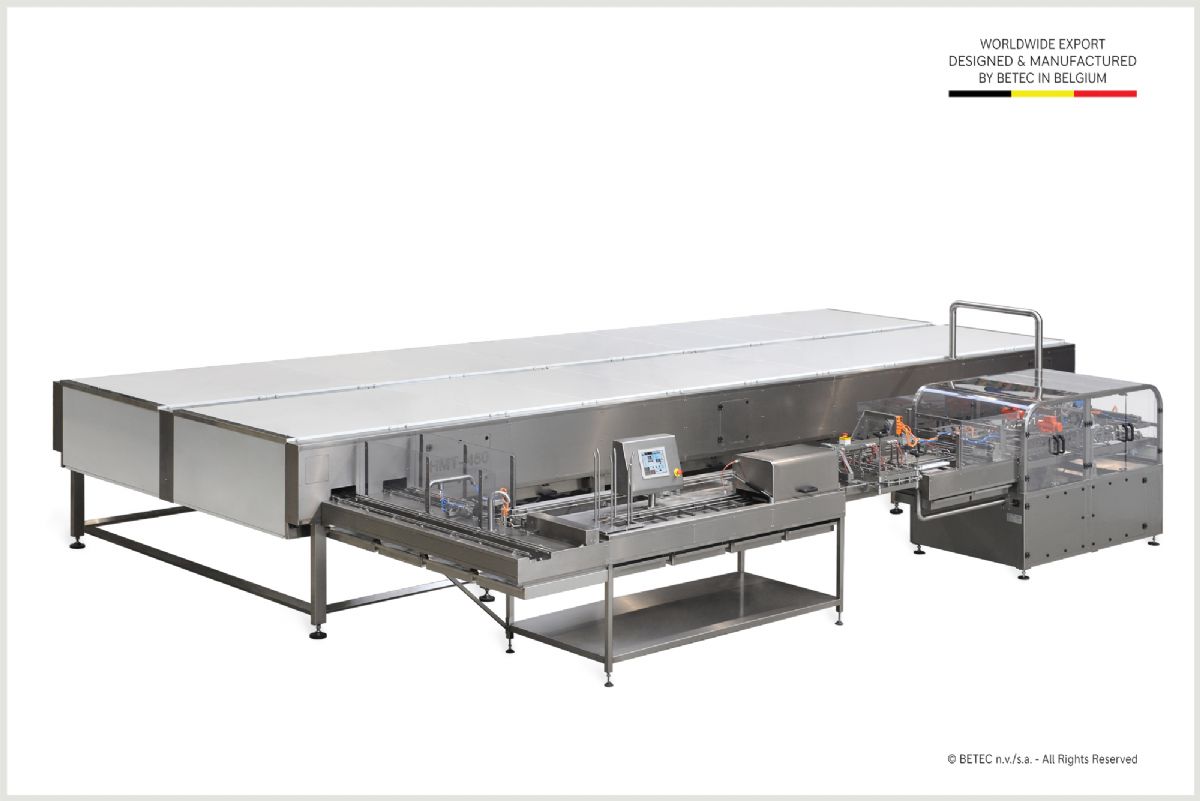

  • Optional cooling tunnel and more
  • NOTE: Used with a hand moulding machine or automatic tempering machine

Moulds are placed manually on the chain that positions them under the mould heater. When they have reached the desired temperature the moulds are positioned under the depositing unit to be filled, which is equipped with electrically heated scrapers. After filling, moulds are placed on the first vibrating table, then flipped or rotated 180 degrees. Mould are then positioned on the 2nd vibrating table with an incorporated frequency regulator that can define shell thickness.

A water heated catch pan is mounted under the first and second vibrating tables to collect excess chocolate from the moulds, pumping it back to your hand moulding machine or automatic tempering machine with a water heated chocolate pump. Moulds then pass to the take-off table equipped with bottom and side scrapers for optimal cleaning.

Manufactured by Betec in Belgium, the CL 600 is made completely of stainless steel 304 thickness 3mm and is easy and fast to clean. Its color touch screen allows a clear view of parameters that can be easily managed.

ML 400 DIMS: 3200 L x 1100 W x 1650 mm H
ML 600 DIMS: 6500 L x 1100 W x 1650 mm H
ELECTRICAL: 3 Ph 380/420V, 50Hz; 3 Ph 220/240V, 50/60Hz

Contact TCF Sales to learn more about the Betec ML 400 and ML 600 Moulding Lines to produce chocolate bars, pralines, and hollow figures.
