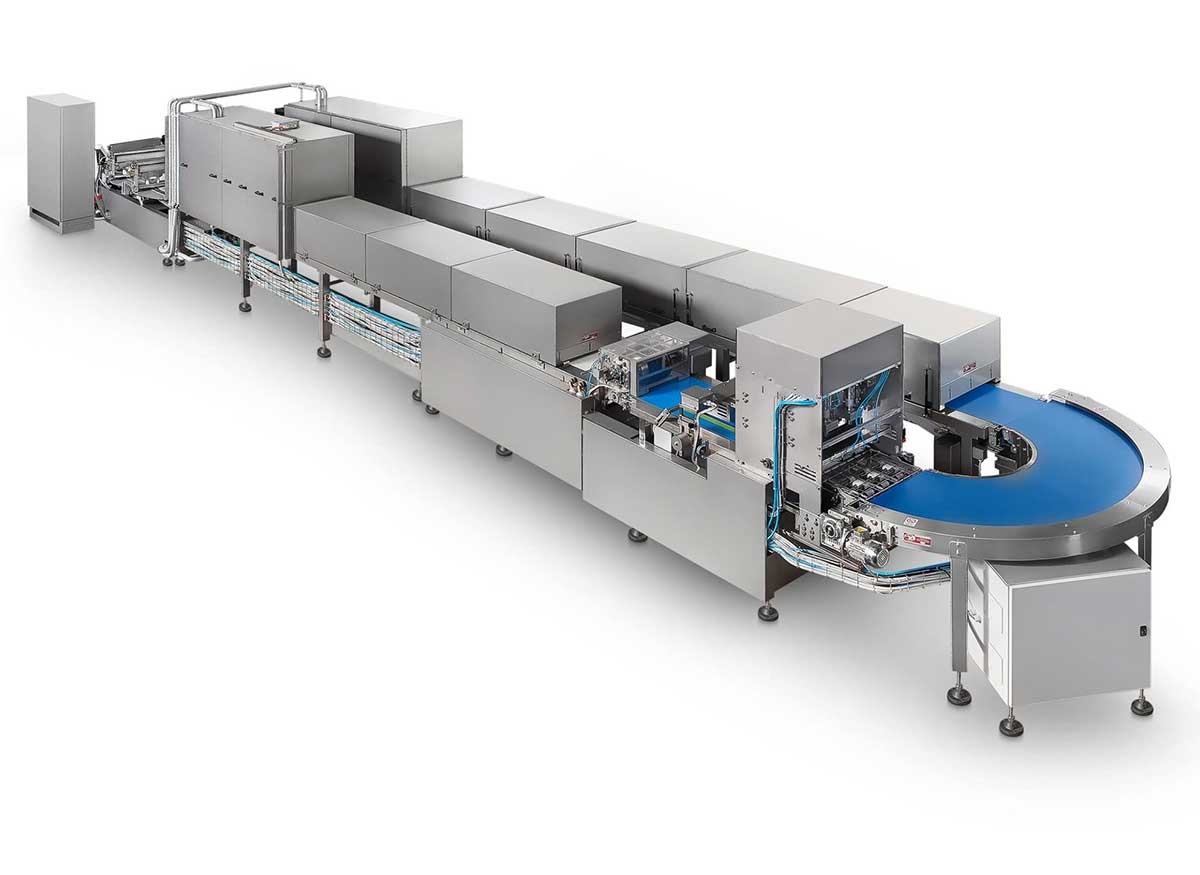

The Mia Food Tech, LC Models automatic bar production line is ideal for producing cereal, energy bars, protein bars, etc. with production capacity of 3,500 to 12,000 bars per hour. Easy to clean system. Mia Food Tech prides themselves with customizing lines to customer specific needs.
Features:
- Machine made entirely of AISI 304 stainless steel
- Lamination belt width from 240 to 400 mm
- Customizable line layout based on the product features
- Tunnel for cooling/holding the product before cutting the bars
- Bar cooling tunnel after cutting to optimize subsequent processes or packaging.
- Line speed and all cycle parameter settings via the HMI panel
- Possibility of remote control and monitoring for Industry 4.0 standard
Technical Specifications:
- Temperatures can be set in different areas ranging from -10°C/+100°C
- Bar width change via the HMI panel
- Product thickness adjustment from 5 to 25 mm
- Longitudinal cutting unit with multiple circular blade cutter
- Guillotine transverse cutting unit with pneumatic movement or ULTRASONIC cutting with mechanical movement driven by gearmotors.
- Bar separation system for end of line automation
- Lubrication system with release oil for extra sticky products.
LC240
Lamination width: 240-260 mm
Production capacity: 3,500 - 7,000 bars/h depending on the size and product
System length: from 10 to 18 meters depending on the options installed
LC320
Lamination width: 300-320 mm
Production capacity: 4,500 - 9,000 bars/h depending on the size and product
System length: from 11 to 25 meters depending on the options installed
LC380
Lamination width: 380-400 mm
Production capacity: 6,000 - 12,000 bars/h depending on the size and product
System length: from 11 to 25 meters depending on the options installed
Call TCF Sales today and we can set up a virtual call with the manufacturer and our team to go over your needs. MIA Food tech has over 30 years of manufacturing experience. NOTE: Video shown is the BARS AUTOMATIC LINE LC 390. Let us customize a machine for you!
